1. Initiate Approval Process
- After the actions of creating, editing, and voiding the object are executed, the approval process will be triggered. After filtering through the approval process filter, if the process filter condition is met, the corresponding approval process will be triggered.
- Batch newly imported data can trigger the new object approval flow.
2. View Approval Flow To-do List
**Web **
- Description: After the approval process is initiated, the system will send the task to-do to the relevant processing personnel according to the process configuration, so that the executor can keep abreast of and view the to-do activities.
- To-do List Viewing Entry: In "CRM To-Do - Pending Approval Process", a list of unprocessed or processed approval processes to be processed by the current user will be displayed.
- Filter & Automatic Refresh: In the filter, you can filter out the approval flow through options such as process subject, task status, and process time, or you can directly click on the object in the approval flow to-do list to filter, and after the processing is completed, the to-do list Can be refreshed automatically.
- Batch Processing: Check the checkbox in front of the approval flow to execute approval and rejection operations in batches.
- Display Form: You can choose the display method of the to-do on the right, which is divided into list type and card type

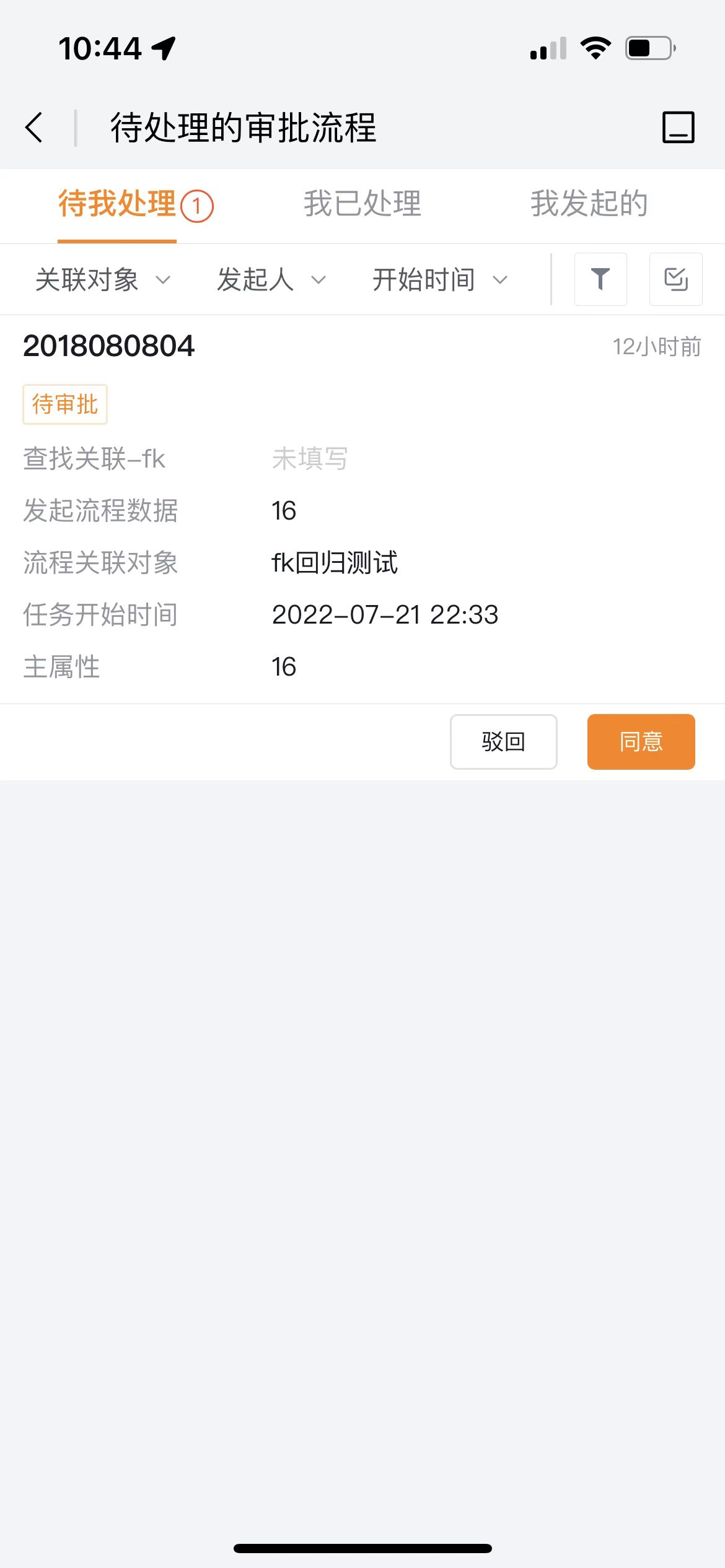

Mobile
- Divided into three parts: to be processed by me, processed by me, and initiated by me
- Can be quickly filtered by associated objects, sponsors, and start time
- Customized filter items and batch processing approval process can be performed on the right
web page
mobile terminal
3. View Approval Flow Details Page
3.1 Web
- Description: After the approval process is initiated, the system will send tasks to be done to the relevant processing personnel according to the process configuration, and the executors can process the approval on the approval flow details page.
- Approval Flow Details Viewing Entry: In "CRM To-Do-Pending Approval Processes", a list of approval processes to be processed by the current user or processed will be displayed.
- Under the object data details page, you can view the entire approval process, approval comments, and approval configuration.
- The approver can pass, reject, replace the processor, reply, withdraw the approval, discuss, add a sign, etc. to the approval (the buttons displayed on the front end of different roles may be inconsistent).
- Non-approvers can also reply under a certain node, and can @relevant personnel when replying.
- Click【...】to email, forward, set reminders, add to schedule and print the process

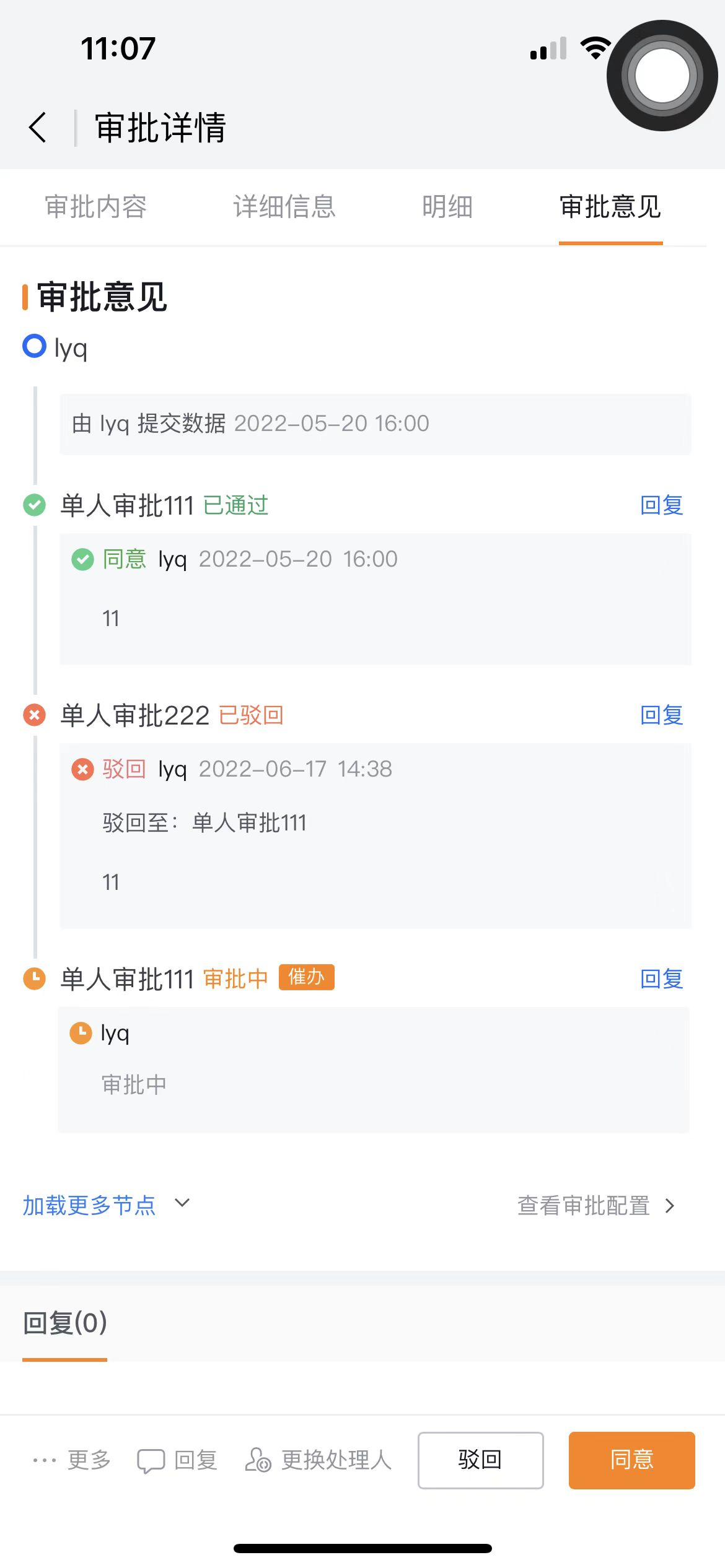

3.2 Mobile
- The function is basically the same as that of web
web page
mobile terminal
4. Approval Node Processing Permission
| Agree | Approval Approval Supports approval comments that give agree |
| Reject | Rejected Approval Support to give rejected approval opinion |
| Reminder | Support approval initiators, data owners, and administrators to support reminders for approval. When the approval scene is urgent, you can click the Reminder button to urge the processor to handle the approval in time to speed up the approval process |
| Withdraw Approval | When the approval initiator finds that there is something wrong with the data he submitted, he can take the initiative to withdraw the approval and resubmit the approval after modification |
| Take back Reiterate | When the next node is not approved, the previous node has processed the personnel, and the retrieval and re-examination operation is supported. The processed node is a countersigned node or a step-by-step approval node, which does not support retrieval and re-examination |
| Discuss | Create a new discussion group to facilitate communication |
| Signature | Allow approvers to temporarily add approvers. It is divided into serial and concurrent. Serial is to approve the added approvers at one time, and concurrent is to make the added approvers approve at the same time. |
| Reply | You can reply to the approval under the node, supporting @, likes, pictures, attachments, emoticons, etc. |
| Change Handler | The approver can choose to change or add the responsible person. Newly added approvers can receive corresponding notifications and have the same capabilities as previous approvers |
| Post-signature | After the approval interface is opened, you can sign and select the corresponding processor. After the current node processor approves, the node will be transferred to the selected signer, but it will not affect the overall process flow of the background configuration. |

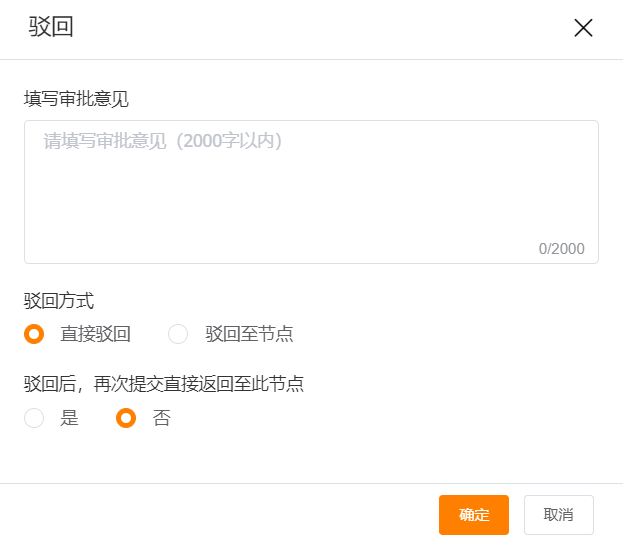

If it is not the first node of approval, you need to choose the rejection method and whether to return to this node directly after the rejection (the mobile terminal is similar to it)

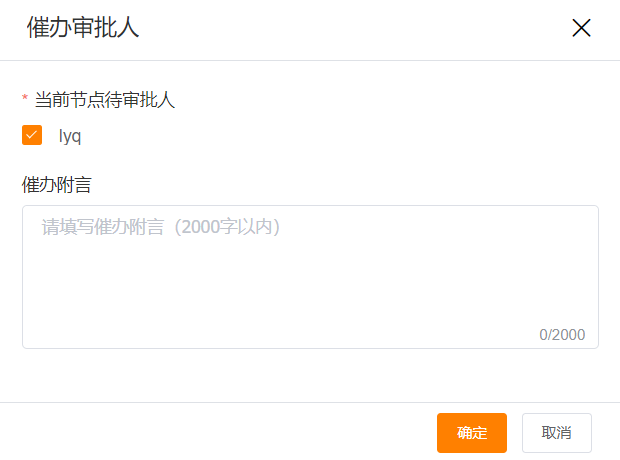

The person to be approved at the current node cannot be empty when reminding
The process initiator can voluntarily withdraw the approval
You can choose whether to delete the original approval comments

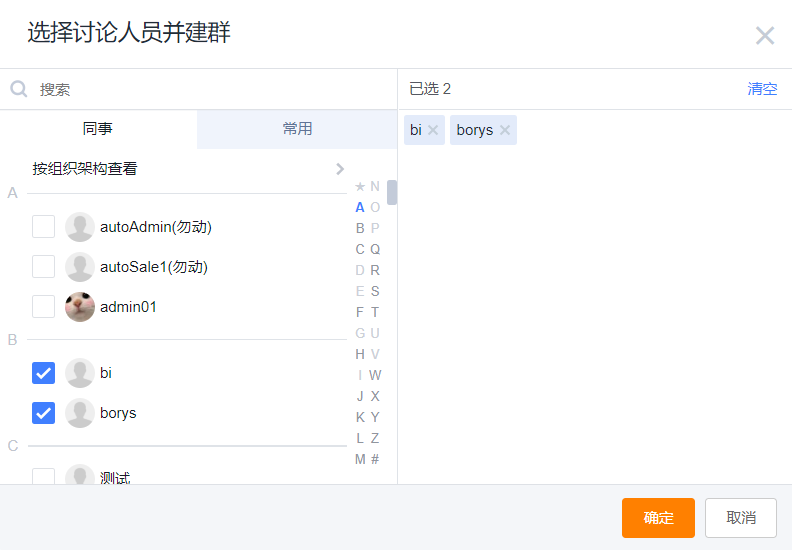

The person in charge of the approval process can be selected for group discussion

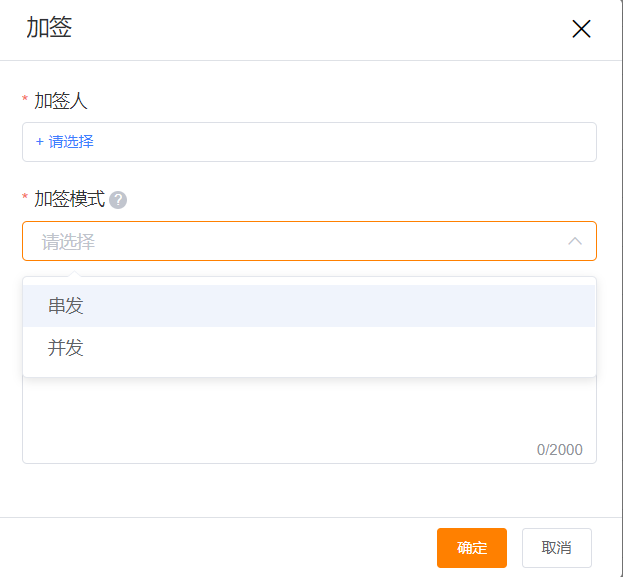

Choose signer and signer mode

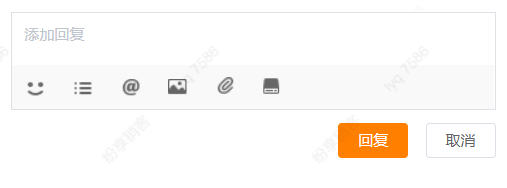

Reply supports emoticons, serial numbers, @, pictures, links and selecting files from the network disk
Newly added processors can receive reminders and have the same functions as approvers

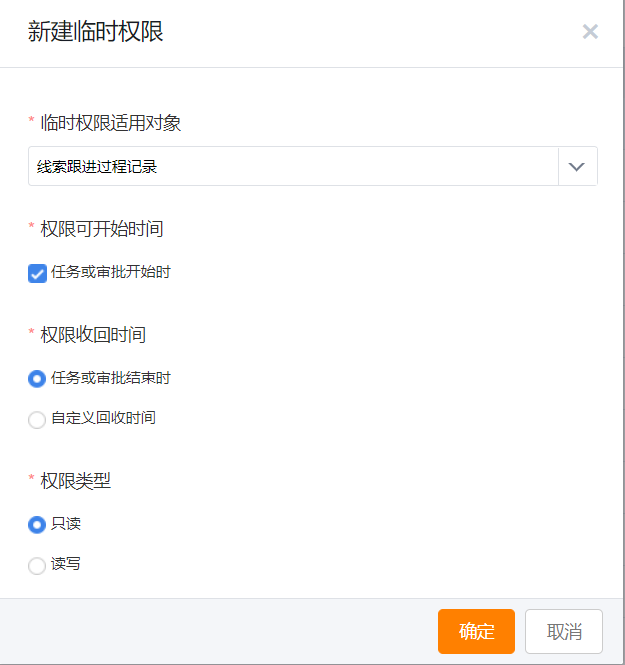

Grant temporary permissions to process processors during approval (temporary permissions can be set under data permissions)
After signing, you need to choose the signer and the method of signing
